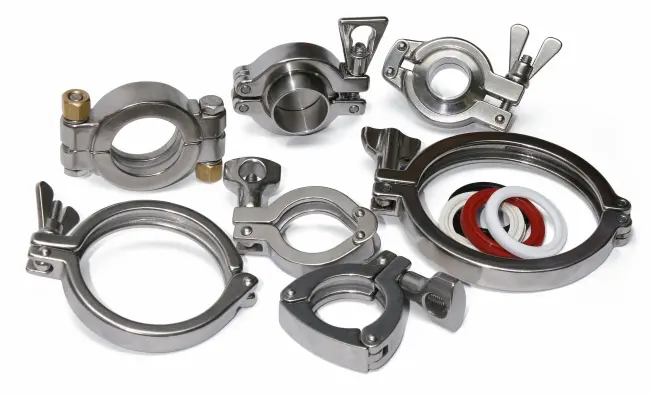

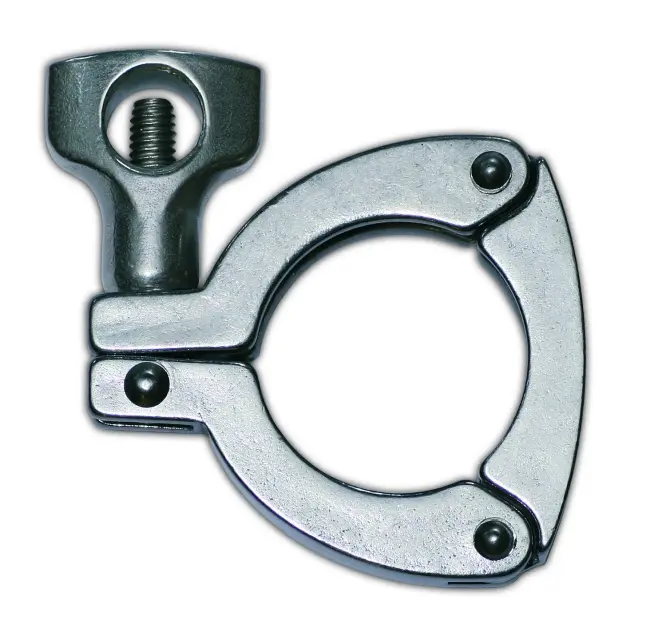

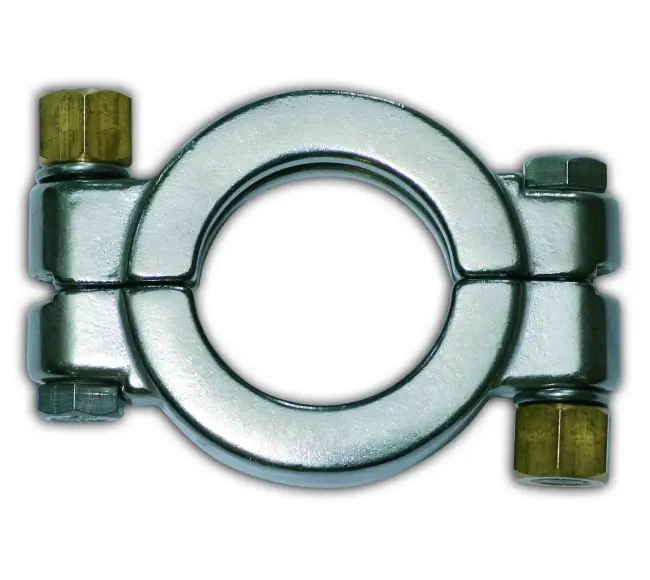

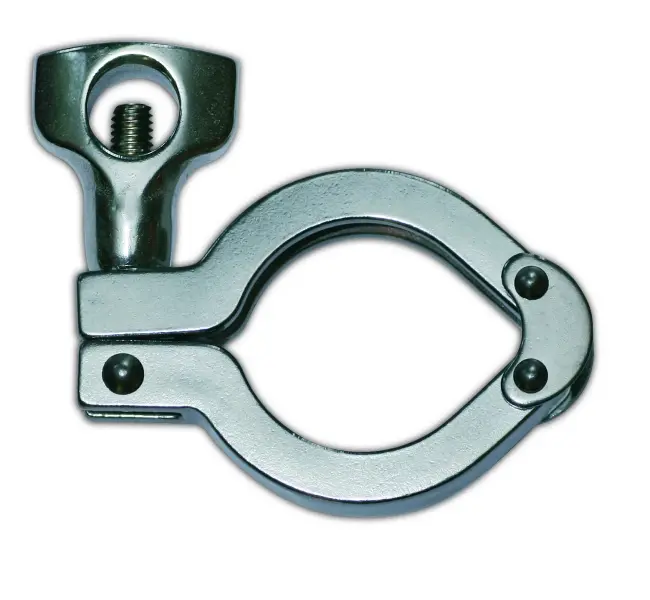

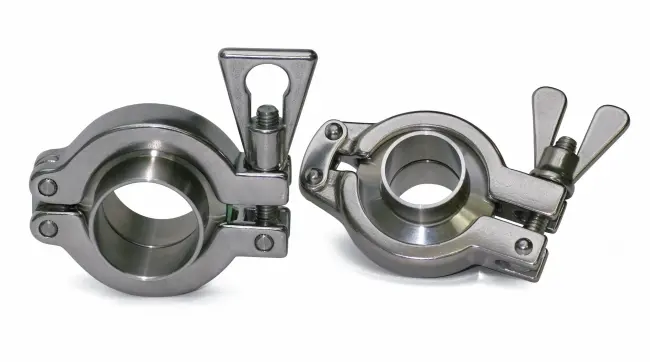

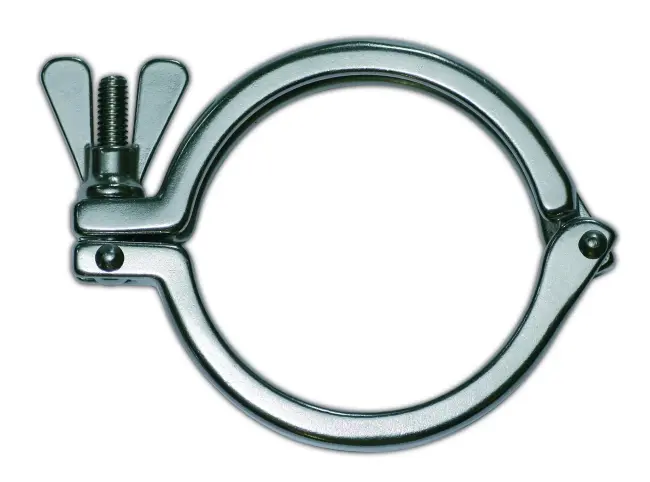

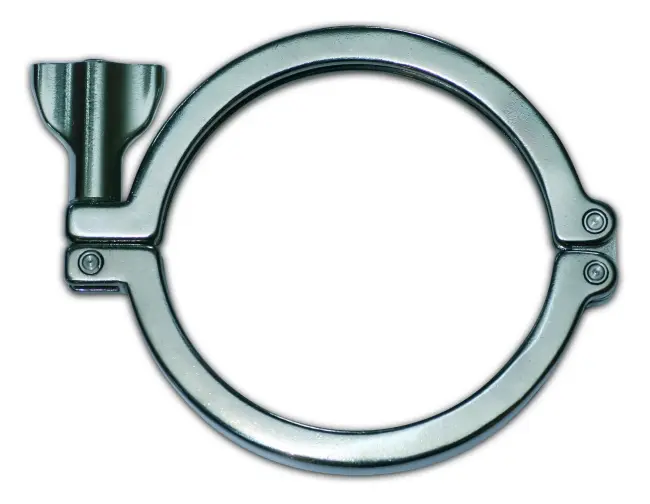

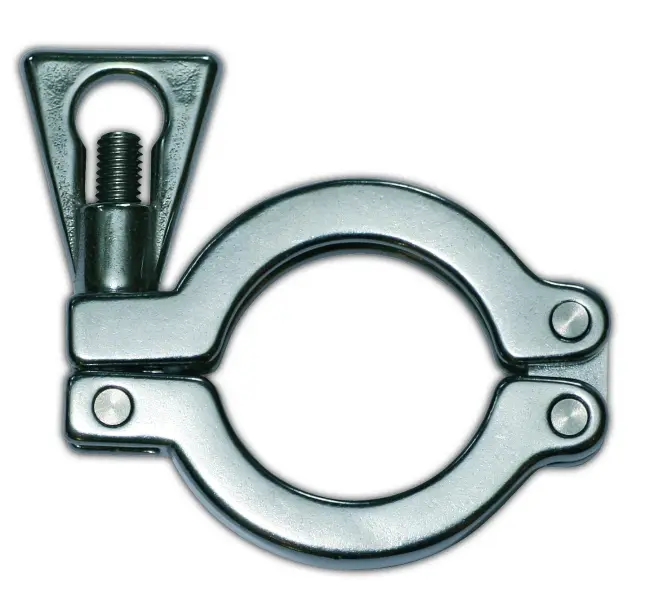

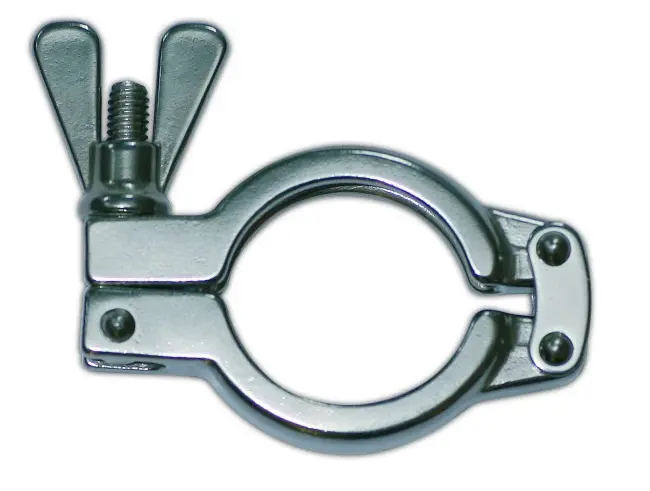

DIN 32676, DIN 11864-3, DIN 11853-3, ISO 2852, BS 4825, ASME BPE The clamps are also available with TÜV component testing on request.

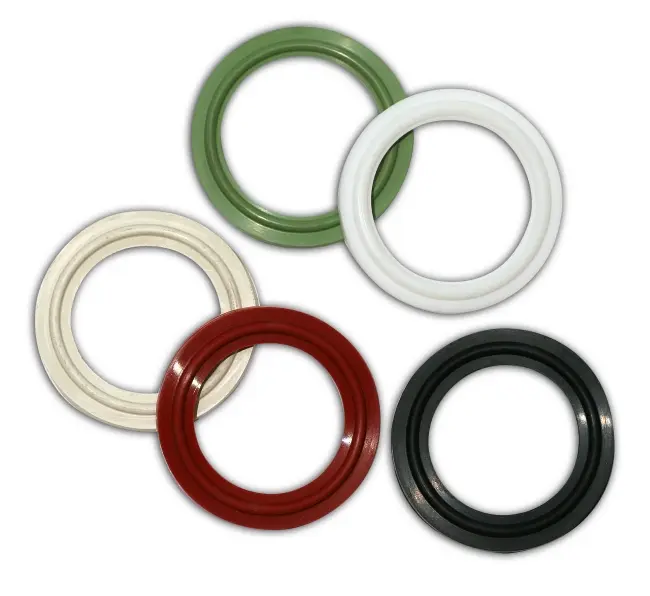

The clamp connections according to DIN 32676 are only designed for the following permissible pressures when suitable clamps are used. Pipe outer diameter from 6.35 mm to 42.4 mm: 2.5 MPa (25 bar) Pipe outer diameter from 48.3 mm to 76.2 mm: 1.6 MPa (16 bar) Pipe outer diameter from 85.0 mm to 219.1 mm: 1.0 MPa (10 bar) These pressures in MPa (bar) can be applied from -10 °C to +140 °C when using suitable sealing materials.
